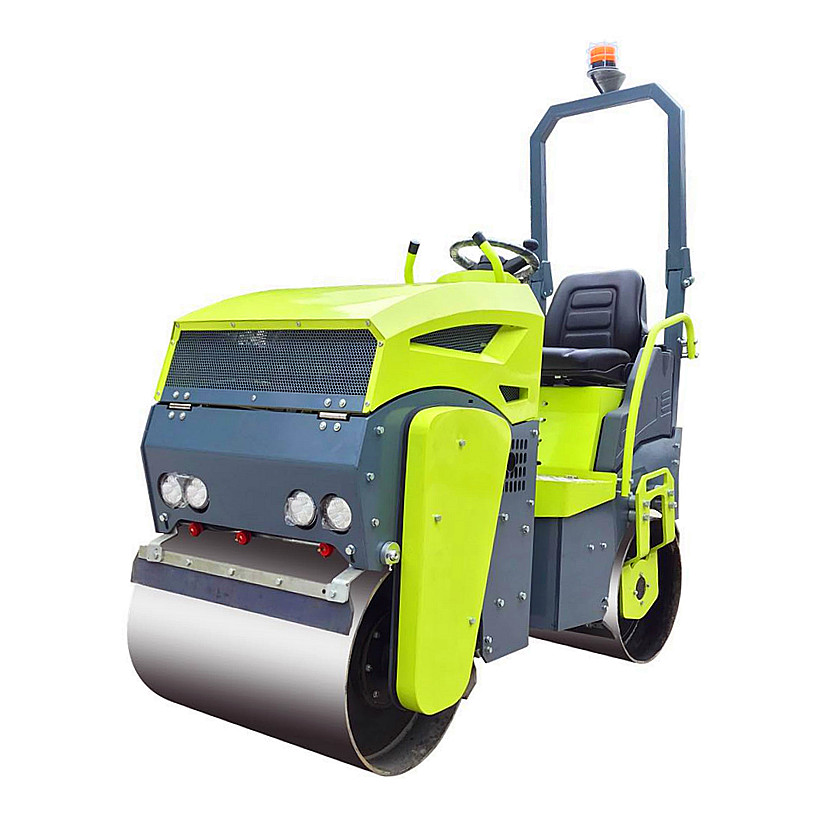

1 Ton Ride On Road Roller Compactor Machine

Product Description

1 Ton 1.2 Ton  Ride On Road Roller Compactor Machine

Storike road roller compactor machine for sale now!

FEATURES

  • Equipped with famous brand power, qualityassurance, superior performance
  • Eagle-eye body design, wide field of vision,beautiful and generous

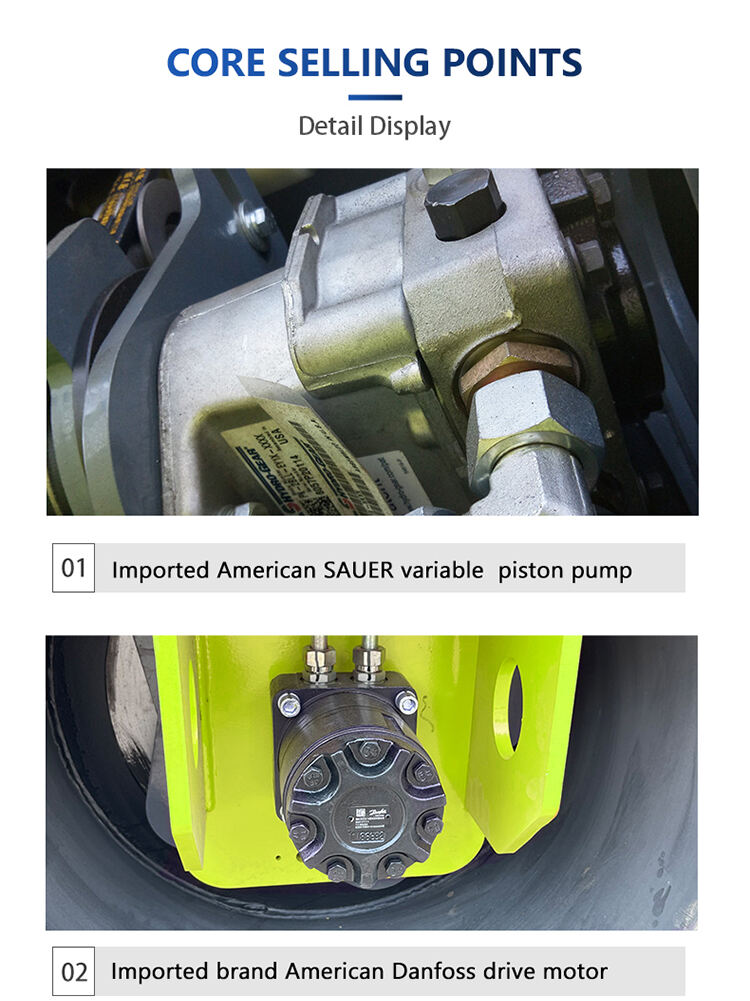

  • lmported hydraulic variable pump and quantitative motor, stepless speed change.walking forward and backward
  • The control panel is fully functional, one-key operationFront and rear lighting & warning lights, can be constructed at night
  • Ergonomic driving
  • The product has passed the CE certification, and the design of the Red Star Award


We have a variety of models of roller to meet your needs, you can contact us to customize, if you are purchasing a large number of machinery for secondary sales, we can help you design product pictures on your website for free.

The following details about the 1 ton 1.2 ton 1.5 ton roller parameters

Model ST1000
Weights
Operating weight kg 1000
Static linear load N/cm 56/77
Dimensions
Working width mm 825
Total length mm 1780/1870
Total height  mm 1450/1985
Outside the turning radius mm 2600
Drum width mm 700
Drum diameter mm 500
Wheel base mm 1230
Drive
Engine manufacturer HONDA CHANGFA/CHANGCHAI
Type GX390 186F
Engine type Gasoline, vertical,single-cylinder,  overhead valve,four-stroke Diesel, vertical, air-cooled,single-cylinder, four-stroke
Number of cylinders 1
Output Power kW 9.7 6
Rating speed rpm 3600
Electric equipment V 12
Drive mode Variable displacement pump, stepless speed change, two wheels drive motor parallel
Driving characteristics
Speed km/h 0-6
Climbing ability, vibration on/off % 30
Brakes
Working brake   Variable displacement piston pump
Steering
Steering method Hydraulic steering
Steering system Swing articulated
Exciter system
Vibrating drum Front
Driving form Mechanical transmission electromagnetic clutch
Frequency Hz 70
Amplitude mm 0.5
Centrifugal force kN 25
Sprinkler system
Type of sprinkling Intermittent pressure spray
Capacities
Hydraulic oil capacity L 15
Fuel capacity L 6.5
Water tank capacity L 70

Product display

E521E5E853E1A9AA554F2CE5F0A5383C.png 微信图片_202104081629457.jpg 微信图片_2022011714521027.jpg ST1000.jpg

Product detail






Our factory


Shandong Storike Engineering Machinery Co., Ltd. was oneof the top three small road roller manufacturer in China, located in Jining city, Chinese machinery equipment production base.Our company was established in 2011, covered anarea of 18,000 square meters with 100,000 units annual output, had rich experience in production and sales. We have 5 major categories compaction machinery, mobilelighting machinery, concrete machinery, pavementmainte.nance machinery and hydraulic machinery. Road roller mobile lighting tower, concrete scarifer and hydraulic power station was our hot selling products.
